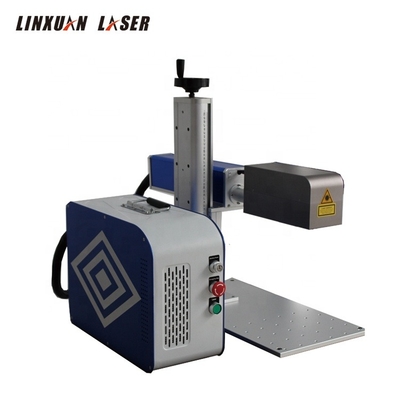

Laser Marking Handheld Metal Mini Focus 3D Dynamic Fiber Laser Marking Machine 30W Wholesale

1.0 Sets
MOQ
$2,188.00(1 - 4 Sets) $2,080.00(>=5 Sets)
Prix
Laser Marking Handheld Metal Mini Focus 3D Dynamic Fiber Laser Marking Machine 30W Wholesale
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Application: Laser Marking
Working Accuracy: 0.001mm
Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Laser Type: Fiber Laser
Condition: New
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD
Laser Source Brand: RAYCUS
Control System Brand: Cypcut
Weight (KG): 65 KG
Key Selling Points: Automatic
Warranty: 2 years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Marking Area: 110mm*110mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 2 years
Core Components: laser source
Laser Source: fiber laser
Wavelength: 1064nm
Output Power: 30W/50W/100W
Pulse Repeatable Frequency: 10kHz-200kHz
Processing Range: 200*200*30mm/200*200*-100mm
Lens Focal Length: 200mm254mm
Power Demand: single phose AC220V 10A/three phose AC380V 10A
Max Speed in X-Y Axis: 6m/s
Min Linear Width: 150um
Overall Power Consumption: 0.8KW
Certification: ce, ISO
After-sales Service Provided: Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
After Warranty Service: Online support
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Russia, Spain, South Korea
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Russia, Spain, South Korea
Marketing Type: Ordinary Product
Informations de base
Certification: ce, ISO
Conditions de paiement et expédition
Packaging Details: Inside: waterproof plastic film Middle: white foam Outside: wooden case free of fumigation
Supply Ability: 3000 Set/Sets per Year
Description de produit

Wholesale Handheld Metal Mini 3D Dynamic Focus Fiber Laser Marking Machine 30W

Product Description

Technical parameters:

Product name: LX-A4 3D fiber laser marking machine
Laser power: 30W 50W 100W
Frequency: 20KHz-80KHz
Marking area: 110*110mm(70-300mm optional)
Marking color: black, white, colour(according to material)
Output power of laser: 10%~100% continuously to be adjusted
Cooling mode: air cooling
Communication interface: USB
The minimum focus facula diameter: 20μm
Minimal character: 0.15mm*0.15mm
Marking depth: 0-2mm(according to material)
Repeated accuracy:

0.002mm

Working condition: humidity 5%-75%, free of condensed water
Marking format: graphics, text, bar codes, two-dimensional code etc.
Scanning head: high speed optical scanning galvanometer
Focus assistance: double red pointer combined in head
Warranty: 24 months
Optional: rotary device, moving table, other customized automation

Application

Applied Industries:

Eletronic components: resistance, capacitance, chips, printed circuit boards, computer keyboard etc.
Apparatus and meter: panel board, nameplates, panel signs, precision equipment etc.

Hardware tools:

knives, tools, measuring tools, cutting tools etc.
Mechanical parts: pistons, bearings, gears, shafts, clutch, standard parts, motors, etc.
Daily necessities: cosmetics, labels, handicrafts, zipper, key holder, sanitary ware, eyewear, LED light etc.
Digital electronic: computer, laptop, digital camera, mobile phone and accessories etc.
Jewelry: rings, necklace, earrings, gold, silver etc.
Medical: medical device, surgical instruments, medical packaging etc.
Packing: dishware ,food, beverages, smoking and alcohol, plastic packing bag etc.

Marking Materials:

Metals: gold, silver, brass, sluminium, steel, stainless steel, iron, Iitanium, carbon steel, mild steel, spring steel, copper, magnesium, zinc, galvanized sheet, rare metal and alloy steel, special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy) etc.
Nonmetals: rubber, resin, nylon, plastics(PET,HDPE,PP, ABS,PC,PPS,PVC) makrolon etc.

Marking Contents:

Graphics: picture, logo, design, bar code, two-dimension code etc.
Text: character, number, time, serial number, production date, expiry date etc.

Transcation Details

Company Information

Our Services

Pre-sale service:
1. Free inquiry and consulting support.
2. Free sample testing.
3. 24 hours detection process by professional testing equipment and facilities before shipment.
4. "Trade Assurance" free payment protection service for buyer.

After-sales service:

1. 2 years warranty for the machine.
2. Free "instruction manual" and "operation video".
3. Free online training for installation and operation.
4. Lifetime technical support by e-mail, phone or video.
5. Provide door-to-door instruction and operating training service by our engineer if need.
6. Engineers available to service machinery overseas.

Packaging & Shipping

1.Inner package: waterproof plastic transparent film

2.Middle package: white foam, to protect the machine from shaking

3.Outside package: wooded case free of fumigation

4.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways

5.The delivery lead time would be 5 days

FAQ

Q1: This is the first time I buy this machine, what type of the machine should I choose?
Please tell us what material will be marked/engraved and the depth of marking/engraving, our professional sales will advise you the suitable model machines.


Q2: How do you ensure that it's the right machine I need? Or How can I check the quality?
You can ship us your sample material and marking content for testing, samples will be done within 1-2 days after get your sample material, then we take pictures and video for you or can ship it back to you for quality checking.


Q3: I don't have experience to operate this machine, what should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.


Q4: What payment terms can you accept?
Any payment is possible for us, like TT, Western Union, Paypal, E-Checking, Master Card, Cash etc.


Q5: How do you ship the machine to me?
Generally, it was shipped by air, by sea or by express(UPS, DHL, Fedex,TNT,EMS).

Q6: What’s the package? Is it safe enough to protect the products?
We have 3 layers package. For the outside, we use wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.


Q7: What is the lead time?
For standard machines, it is 5-7 days; For customized machines, it is according to your requirement, it would be 10-15 days.


Q8: What is your warranty? What should I do in case the machine break down?
We provide 2 years warranty.During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service and technical support.
